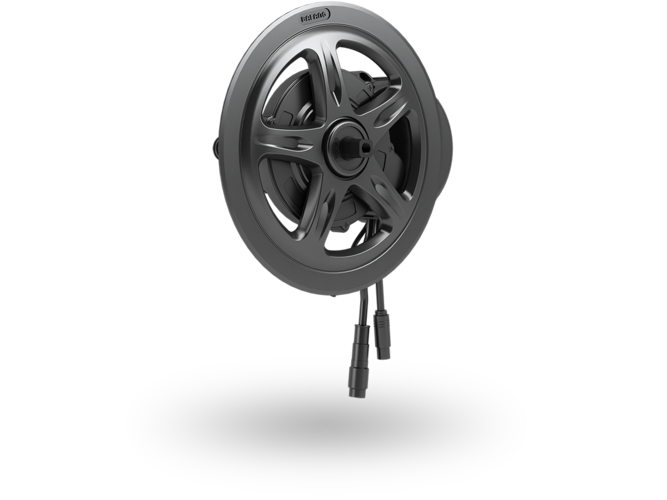

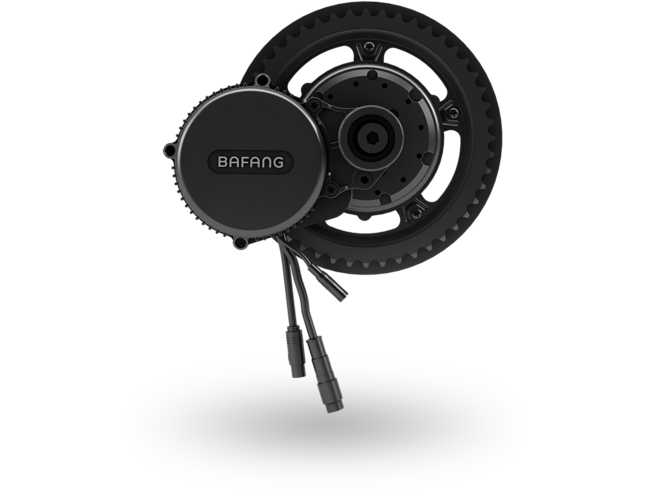

Bafang BBS02 Motor Kit

Bafang BBS02 Motor Kit

460.00

The latest BBS motor direct from the Bafang factory..

MM G340.250.CB

  • PositionMid Motor

  • Wheel Diameter (Inch)Optional

  • Construction Gear drive

  • Rated Voltage (DCV)36/48

  • n0 (Rpm)83/87

  • Rated Power (W)250

  • nT(Rpm)78/83

  • Max Torque80 N.m

  • Efficiency (%)≥ 80

  • Pedal Sensor

  • SpeedShaft

  • StandardJIS

  • ColorBlack

  • Weight (kg)3.8

  • Noise Grade (dB)< 55

  • Operating Temperature-20-45℃

    Function

    E-BrakeYes

  • Gearsensor FunctionYes

  • Light Drive Capacity (DCV / W)6 /3(max)

    Further Specifications

  • Speed Detection Signal (Pulses/Cycle)1

  • Reduction Ratio 1:21.9

  • Magnet Poles (2P)16

    Tests & Certifications

    IPIP 65CertificationsCE / EN 14764 /

  • ROHSSalt Spray Test Standard(h)96

Quantity:
Add To Cart
